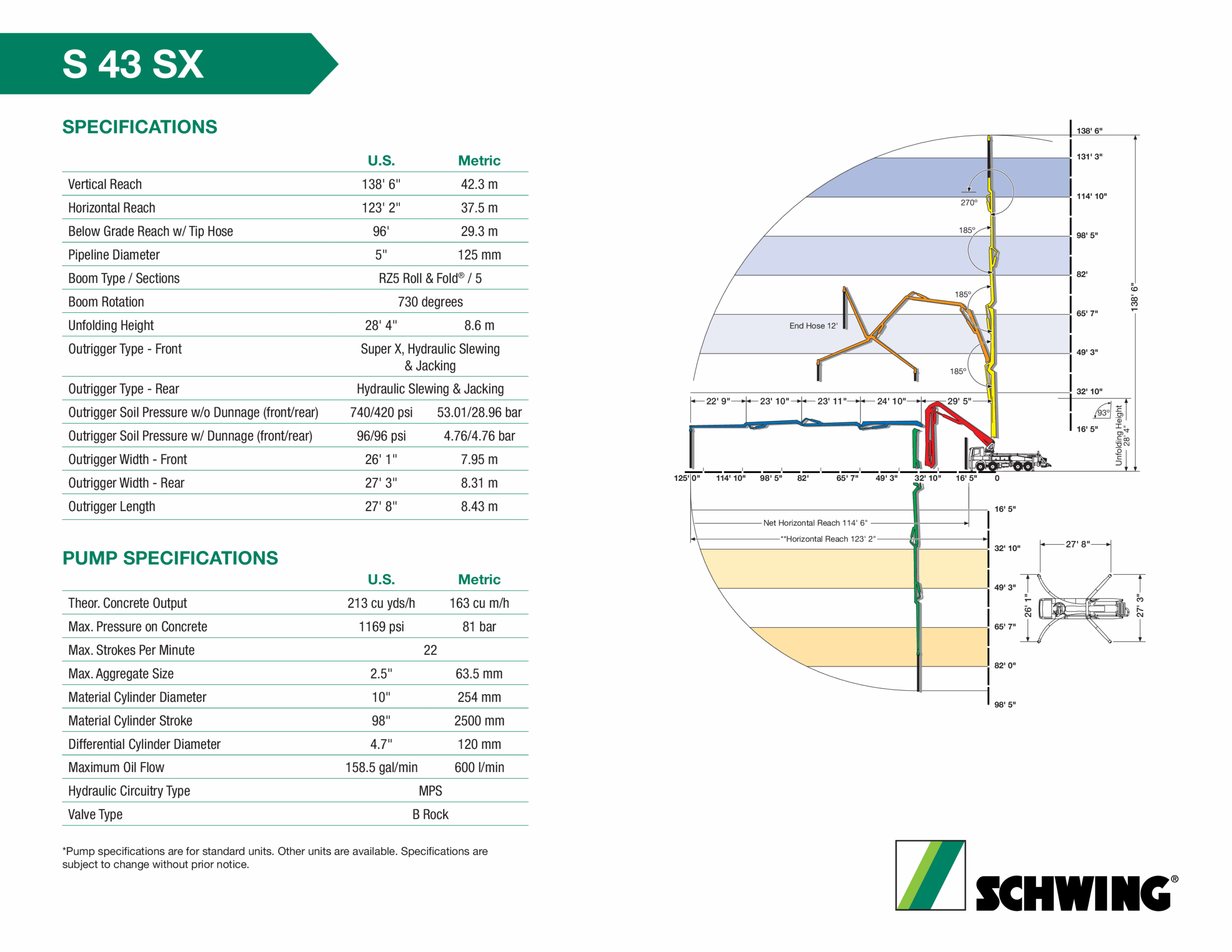

S43

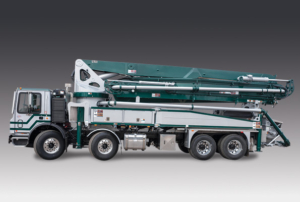

Truck Mounted Concrete Pump With 5-Section Placing Boom
	U.S.	Metric
Vertical Reach	138′ 6″″	42.3 m
Horizontal Reach	123′ 2″	37.5 m
Below Grade Reach w/ Tip Hose	96 ft	29.3 m
Pipeline Diameter	5 in	125 mm
Boom Type / Sections	RZ 5 Roll & Fold®/ 5
Boom Rotation	730 degrees
Unfolding Height	28′ 4″	8.6 m
Outrigger Type – Front	Super X Outriggers, Hydraulic Slewing & Jacking
Outrigger Type – Rear	Hydraulic Slewing & Jacking
Outrigger Soil Pressure w/o Dunnage (front/rear)	740/420 psi	53.01/28.96 bar
Outrigger Soil Pressure w/ Dunnage (front/rear)	96/96 psi	4.76/4.76 bar
Outrigger Width – Front	26′ 1″	7.95 m
Outrigger Width – Rear	27′ 3″	8.31 m
Outrigger Length	27′ 8″	8.43 m

PUMP SPECIFICATIONS- Standard-2525H-6 120-85 MPS
	U.S.	Metric
Theor. Concrete Output	213 cu yds/h	163 cu m/h
Max. Pressure on Concrete	1169 psi	81 bar
Max. Strokes Per Minute	22
Max. Aggregate size	2.5 in	63.5 mm
Material Cylinder Diameter	10 in	254 mm
Material Cylinder Stroke	98 in	2500 mm
Differential Cylinder Diameter	4.7 in	120 mm
Maximum Oil Flow	158.5 gal/min	600 l/min
Hydraulic Circuitry Type	MPS
Valve Type	B Rock
