SPECIFICATIONS
|
|
U.S. |
Metric |

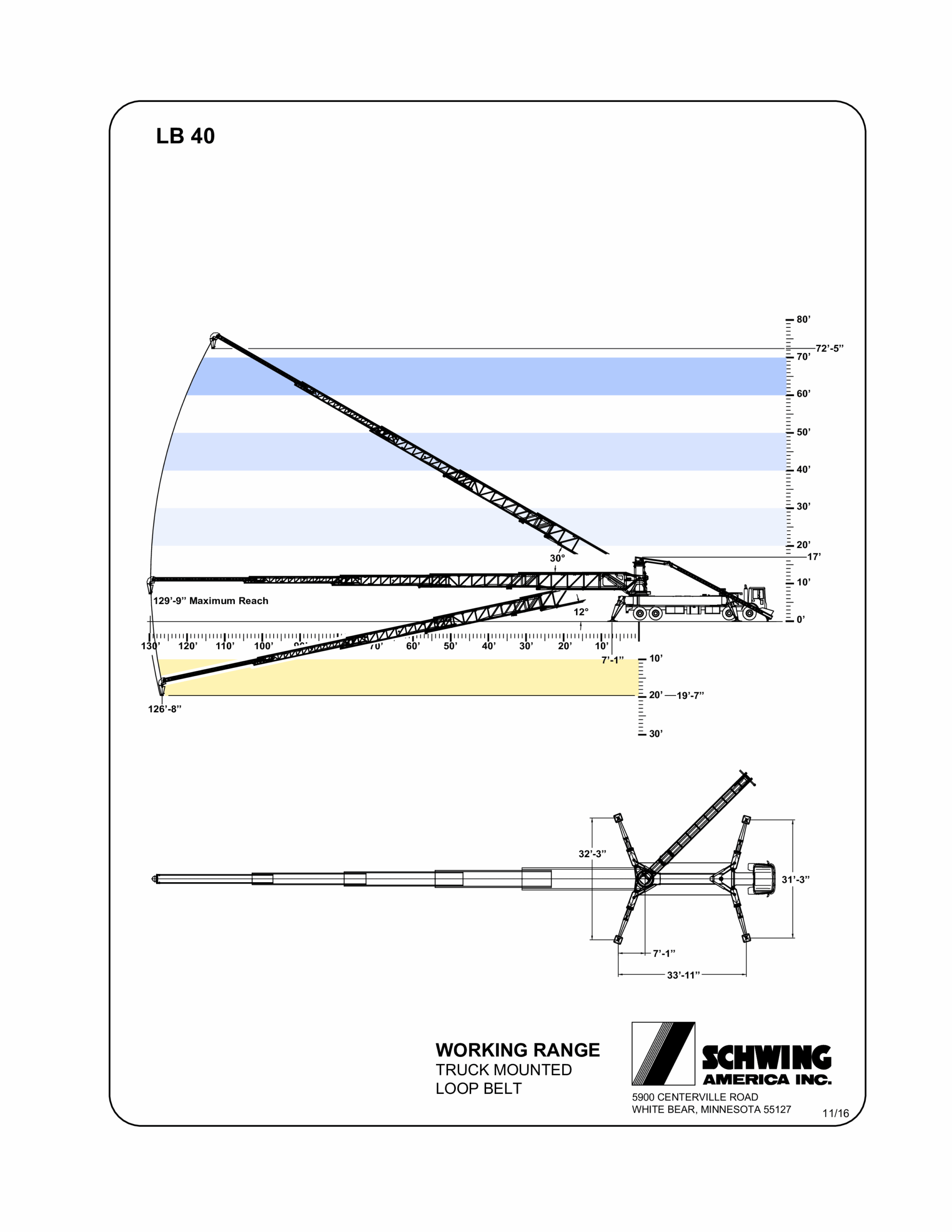

| Horizontal Reach (Max at 0 degrees) |
129’ 9” |
39.56m |
| Vertical Reach (Max at 30 degrees) |
72’ |
22.07m |
| Main and Feeder Rate Capacity at 0 |
8.40 cu-yd/min; 504 cu-yd/hour |
4.47cu-m/min; 268 cu-m/hr |
| Belt Width Main and Feed |
20” |
508mm |
| Boom Type/Sections |
5-Section Telescopic |
| Boom Rotation |
360 Degrees |
| Outrigger Type – Front/Rear |
Fully Hydraulic / Butterfly |
| Unfolding Height |
16’9″ |
5.11m |
| Outrigger Width – Front |
31’3″ |
9.52m |
| Outrigger Width – Rear |
32’3” |
9.83m |
| Outrigger Width – Length |
33’11” |
10.34m |
| Theoretical Concrete Output at 0 |
504 cu-yd/hour |
268 cu-m/hour |
